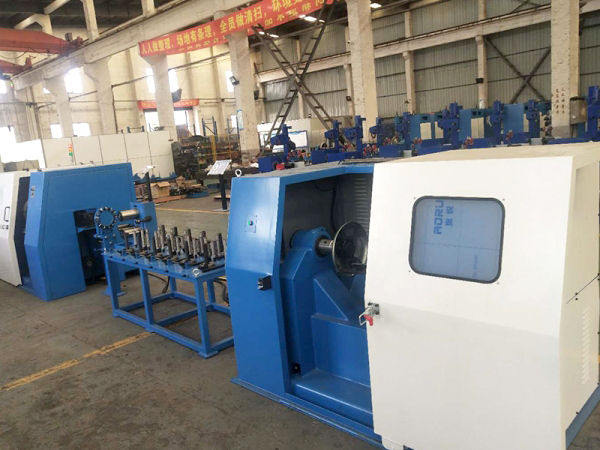

This model adopts 1+12 pay-off, the pay-off tension is stable, the tension is arm friction chain type constant tension mode, has the function of wire breakage protection, is equipped with a changeable over-twist ratio virtual twist device (also can be single control), straightener,traction broken wire detection, double-slot screw cable, variable frequency motor take-up, take-up spool can be selected according to customer requirements, this model has strong applicability, high production efficiency, stable product quality, and large market retention. The operation is convenient, the maintenance rate is low, and the noise is low. The rotary pay-off machine can be controlled individually, and the rotary pay-off I can be customized by the customer.
SGN255(300)-12/1 double twisting machine
SGN500(400)-12/1 double twisting machine
| Machine model | SGN255(300)-12/1 double twisting machine | SGN500(400)-12/1 Double Twisting Machine |
| Maximum speed | 3500rpm/min | 1500rpm/min |
| Maximum twist | 7000 twists/min | 3000 twists/min |
| Production specifications | 1*3,1*7,1*12,1*19 | 1*3,1*7,1*12,1*19 |
| Single wire diameter | 0.17-0.38 | 0.3-0.5（0.7）） |
| Maximum strand diameter | 1.5 | 3.0 |
| Pay off spool | 200,250，B60,(can be Customizable) | 200,250，B60,(can be Customizable) |
| Take up spool | 200,250，B60,300 | 400,500 |
| Motor power | 7.5KW (2.2KW rotating pay-off) | 15KW (4.0 KW rotating pay-off) |
| Row spacing | 4.5mm | 6.5mm |
| Rope twist length |
S：9.91～18.13mm；
Z：11.14～20.39mm |
S：8.70-47.39mm；
Z：9.79～53.31mm |
| Main power supply voltage | 380V—50HZ—3 phase | 380V—50HZ—3 phase |
| Rotating pay-off spool model | B60 spool (optional) | B60 (300) (400)) spool (optional) |
