Model Number:D3200*2000
MOQ:1
Price:USD+20000+SET
Delivery Time:120DAYS
I. Company brief introduction:
We company has be engaged in furnace design and manufacturing field for many years. After more than ten years developing, and with rich experience in design and practice, our furnace enjoys the following advantages:
1. Compact structure design, save floor space
2. Perfect heating effect, high heat transferring
3. Good heat preservation, save power consumption
4. Excellent furnace temperature uniformity, ensure the product quality
5. High structure strength and durability
II. Furnace introduction:
Parameters
| Description | Specifications |
| Quantity | 3 sets |

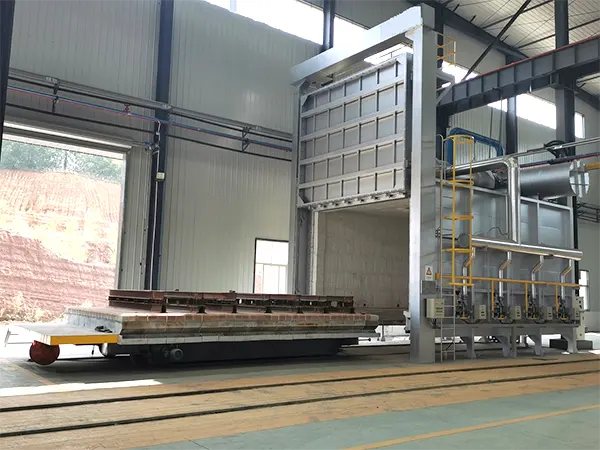

| Type | Bogie |
| Inner chamber | 5600mm*3100mm*1800mm (L*W*H) |
| Effective working chamber | 5000mm*2500mm*1000mm (L*W*H) |
| Furnace base | 6100mm*2500mm*1050mm(L*W*H) |
| Rated temperature | 1200ºC |
| Normal temperature | 650 - 950° C |
| Max. load capacity | 25000Kg/batch(not include bottom load plate) |
| Heating speed | 15-200ºC/h (adjustable) |
| Temperature uniformity | Efective woring area :≤±10ºC;(>600ºC) |
| Accuracy | ±0.1% FS |
