Model Number:LZ560
MOQ:1set
Price:USD20,000.0- 1,000,000.0/SET
Delivery Time:3-4months
Payment Terms:L/C, T/T
| Name | Specification |
| Material | For Low carbon steel |

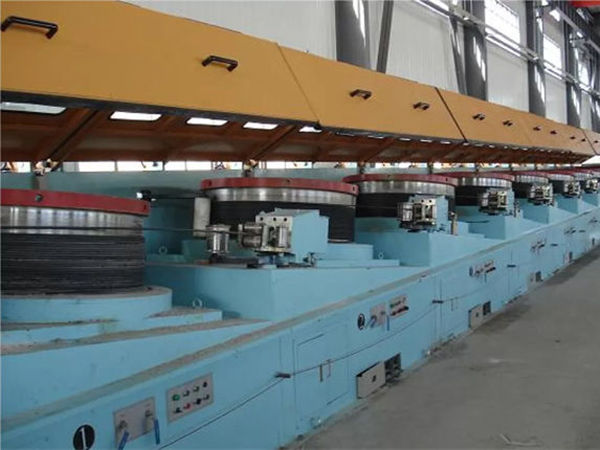

| Model of wire drawing machine | LW560-LZ6/560 |
| Way of drawing | OTO+straight wire drawing |
| Number of block | 7 |
| Block type | First block OTO |
| Block diameter | Φ560mm |
| Way of timing | AC frequency conversion speed adjusting |
| Motor power of block | 7*30KW |
| Dia.of inlet wire | Φ6.5mm |
| Dia. of outlet wire | Φ2.2mm |
| Average compression ratio | ≤26.62% |
| Drawing speed | ≤14m/s |
| Way of control | Complete digital control |
| Logical control | SIEMENS PLC with Profibus connection between machine and electrical cabinet |
| Tension strength of inlet wire | ≤500MPa |
| Carbon content of inlet wire | Low carbon steel wire |
| Block cooling | small narrow gap water-cooling |
| Die box | 1st and last block with rotating die box, others are ordinary die boxes |
| Die box cooling | Direct water cooling |
| Water pressure requirements of cooling system | 0.2-0.3Mpa |
| Requirement of air driving system | Air pressure≥0.5Mpa |
| Time for stop | Normal stop≤50s, emergence stop≤5s |
| Way of brake | Pneumatic disk brake |
| Way of pay-off | Vertical type hydraulic double pay off |
| Way of take-up | Φ1200 horizontal take-up spooler |
