Advantage of this equipment is low noise, stable transmission, high output efficiency, easy operation and maintenance. Machine frame and box body of this machine is welded by good steel plage and steel channel, compact structure and good strength.

We could supply the whole drawing machine line. The Composing of production line:

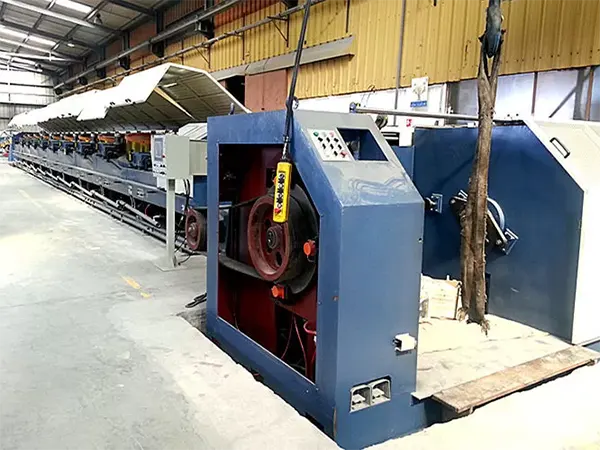

Horizontal rotating Pay-off(including wire push device) → Surface Pre-treatment device → Straight wire drawing machine → coiler take up

Instruction of wire drawing machine

Transportation system:

Two grade belt transmission, double enveloping worm wheels, gearbox with hard tooth surface.

Way of speed adjusting:

AC Frequency conversion speed adjusting or DC speed adjusting.
Way of control:

Profibus field bus control system, touching screen show, human-computer communication, long-distance diagnose function.
Way of take-up:

Spooler take-up, trunk take-up, headstand take-up, and all can take-up wire without stop work.
Way of pay-off:

Spooler pay-off, high pay-off frame, "-" type pay-off, duck-nip pay-off, can pay-off without stop work.
Main function:

Slowdown to stop at fixed length automatically, wire broken test and stop work automatically, cut off any block to compose new technical process freely,slowdown to stop automatically when the protecting shield is open, show of all kinds of fault information and the solution, inspection and control of all kinds of running information.

Material that can be drawn:
Steel wire (High, middle, low carbon steel wire, stainless steel wire, pre-tension steel wire, bead wire, rubber tube wire, spring steel wire, cord wire and so on).Welding wire (Air protecting welding wire, submerged arc welding wire, flux cored wire and so on).lectric wire and cable (Aluminum-clad steel wire, copper wire, aluminum wire and so on).Alloy wire and other kinds of metal wire.

Capstan:

Block is made of cast steel, special technics treatments has already been done to its working surface to get hardness HB250-270, hardness height 250mm, which is extremely wear-resistance. The interior of block adopts narrow gap water cooling, the water jacket is fixed on the axis seat, the gap between water jacket and the block is very small. Once the block rotates relatively against the water jacket, the cooling water spraying from the water jacket will flow at very high speed and get very high heat are no sealing easy damaged parts in water cavity. For more details please consult the technology department of Hangzhou Harbor. Accessory drawings of each block see in the attached drawings.

Notes: All the parameters might be changed according to the actual situation.
