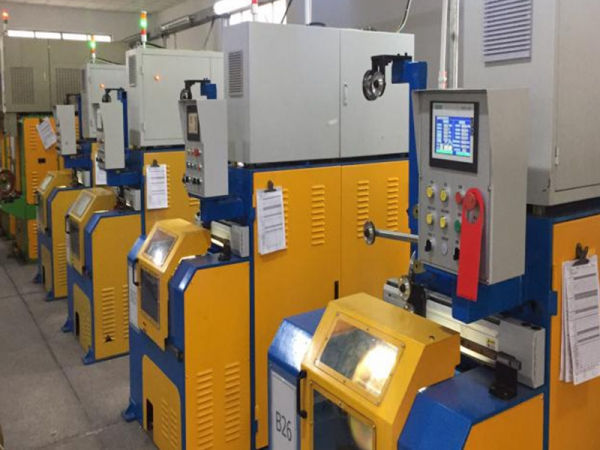

The third-generation special machine developed for the drawing of diamond bus-bars is dedicated to the drawing production of diamond bus bars with finer wire diameter and better quality.

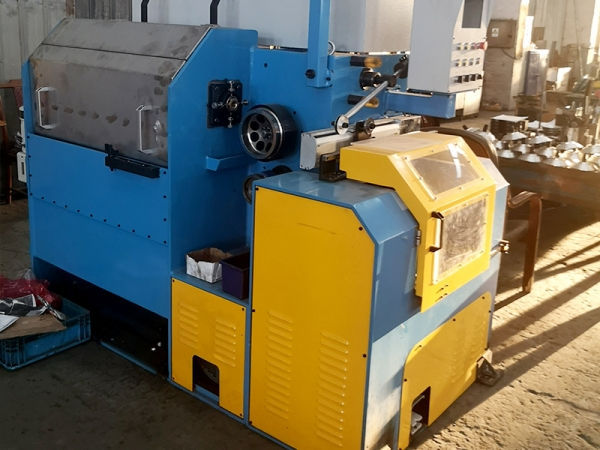

Whole machine configuration: up-draft flower basket pay-off frame + main machine + wire take-up machine (optional wire take-up machine) + electric cabinet, the mold frame is equipped with a self-cooling device, the water tank body is a double-door structure, and is equipped with an automatic door lifting device.
| Drawing material | Brass plated C82-C92+Cr high carbon steel wire |
| Inlet diameter | Ф0.5-Ф0.8mm |
| Outlet diameter | Ф0.03-0.18mm |
| Incoming wire strength | <1450Mpa |
| Maximum take-up speed | 8m/s, best running speed 4m/s |
| Drawing pass(die) | 35 dies |
| Take up machine wire arrange | Constant wire spacing, adjustable wire spacing |
| Maximum noise | 80 dB |
| Number of tower wheels(drum) | One-way drawing, six sets of tower wheels |
| Main machine motor | 15KW variable frequency motor (optional motor) |
| Take-up spool | BS200 (According to the picture provided by Party A) |
Compared with the LT160-31-200, the LT160-35-200 model has adjusted the elongation rate of each pass(die), and the quality rate of the finished steel wire is significantly improved; the overall size is reduced, thereby reducing the area; the liquid inlet and drainage system are optimized , The operation is more convenient; the double-mode structure of the wire outlet device makes the performance of the wire more stable.
