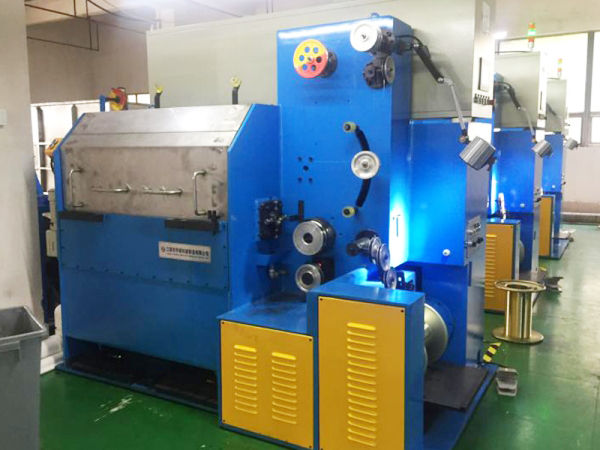

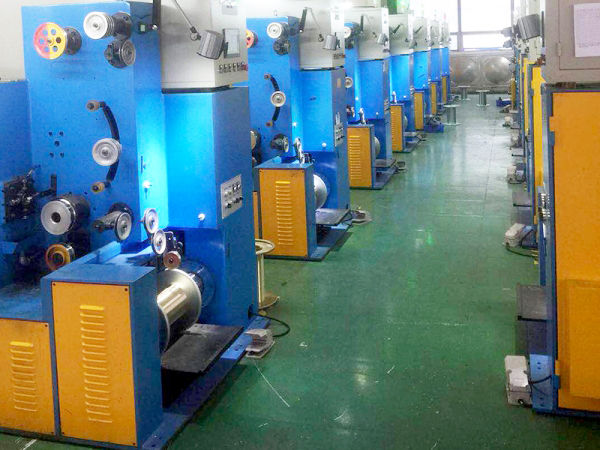

The whole machine configuration: FX760 (BS550)/FX800 spool pay-off machine + main machine + take-up machine (optional for take-up machine) + electric cabinet, self-cooling device is inside the mold frame, double-door structure of the water tank, and equipped with automatic door lifting device.
| Drawing material | Brass plated C82-C92+Cr high carbon steel wire |
| Inlet diameter | Ф0.5-Ф1.04mm |
| Outlet diameter | Ф0.040.18mm |
| Incoming wire strength | <1450Mpa |
| Maximum take-up speed | 8m/s, the best running speed is 4m/s |
| Drawing pass(dies) | 31 dies |
| Take up wire arrange | Constant wire spacing, adjustable wire spacing |
| Maximum noise | 80 dB |
| Number of tower wheels(drum) | One-way drawing, six sets of tower wheels |
| Main machine motor | 15KW variable frequency motor (optional motor) |
| Transmission form | Main engine synchronous belt drive, take-up V belt drive |
| Take-up spool | BS200 (According to the picture provided by Party A) |
