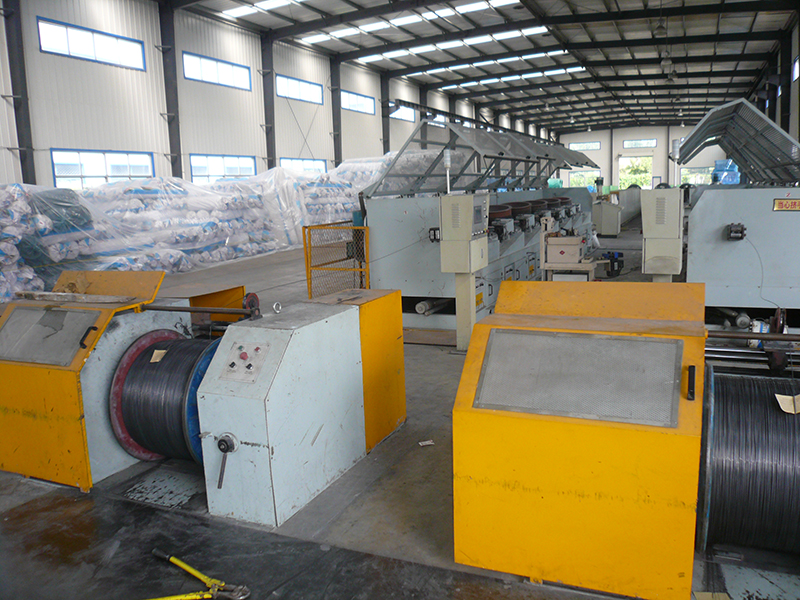

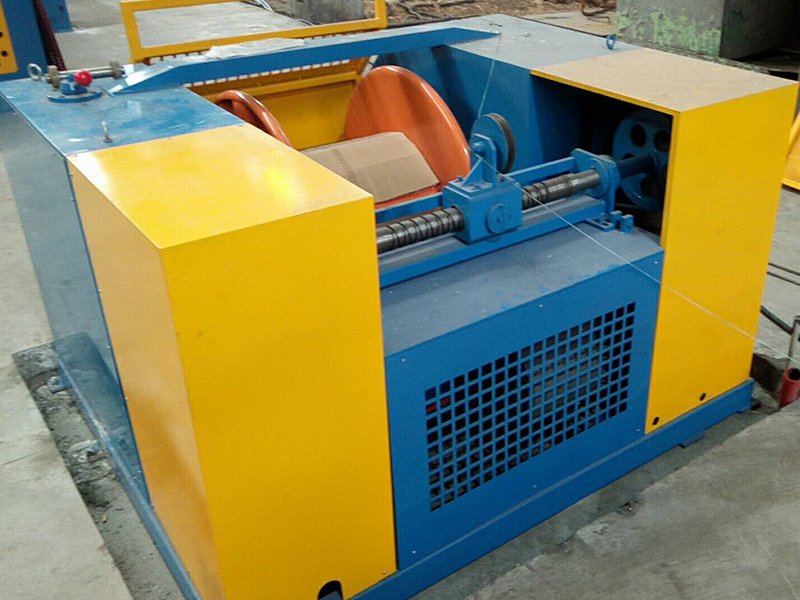

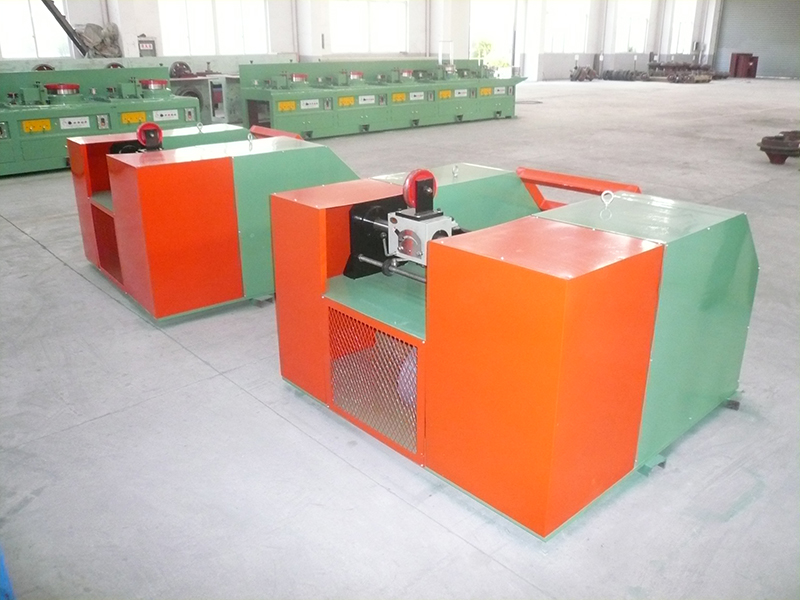

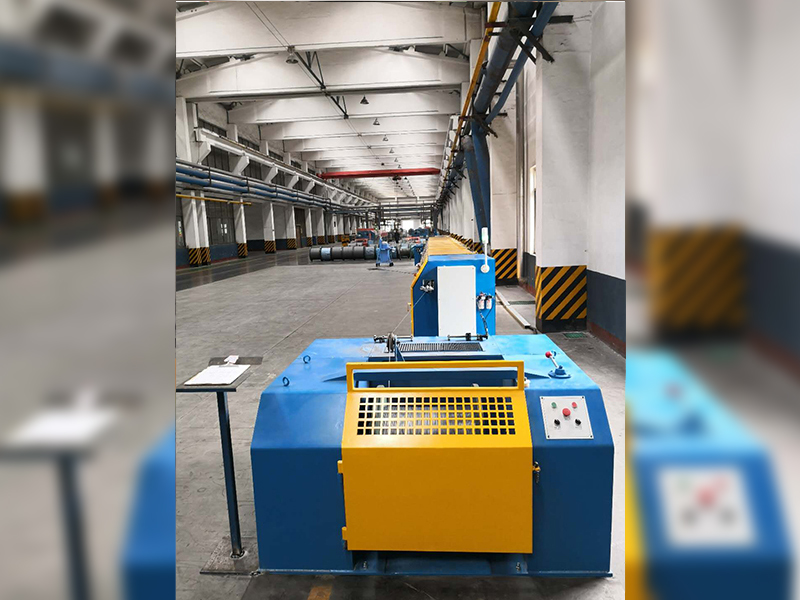

The main drive of the low-speed large-heavy wire take-up machine adopts cycloid pinwheel reducer and chain transmission; the high-speed small-heavy spool take-up machine adopts a V-belt direct drive; the inner two sides of the wire take-up machine adopts three-cylinder pneumatic center The small plate weight of the device adopts two cylinder tops, the I-shaped wheel is pneumatically clamped, and the outer side is designed with a mechanical locking device to prevent the machine from flying out of the machine when the power is cut off. The speed and tension control are generally adjusted by an AC frequency conversion motor. The PLC program controller of the wire drawing machine is adjusted and matched; the wire arranging adopts a high torque screw wire arranging device, which is simple and practical to maintain, but the row pitch cannot be adjusted; if the polished rod wire arranging device is used, the row pitch can be adjusted anytime and anywhere; the wire take-up machine usually must According to the design of the spool drawing provided by the customer, the take-up weight is 30Kg~1000Kg; the protective door adopts a fashionable sliding door.

SG630 spool take-up machine

SG740 spool take-up machine

SG760 spool take-up machine

SG800 spool take-up machine

SG900 spool take-up machine

SG1000 spool take-up machine

SG1200 spool take-up machine
