GS6 steel brush shelling and derusting machine
Classification
2
Pageviews
1455
Place of Origin
Jiangyin Success Electromenchanical Co., Ltd

PRODUCT DESCRIPTION

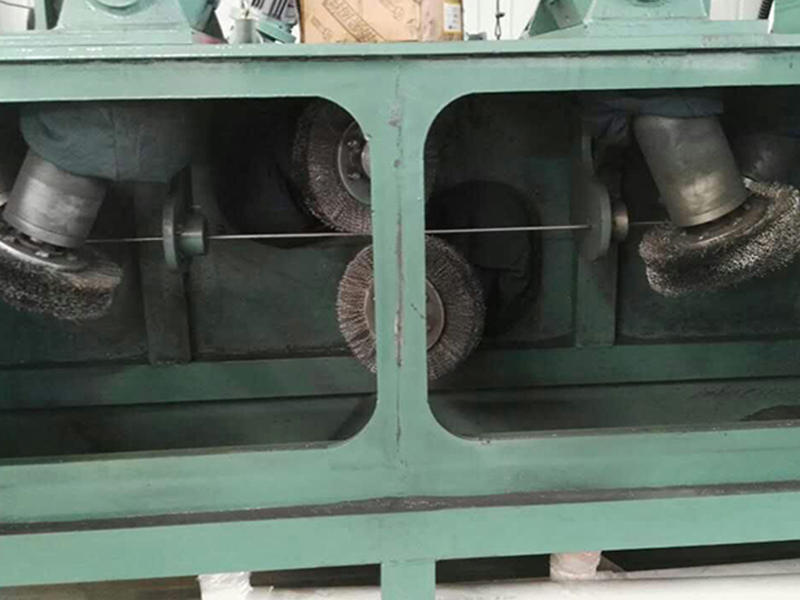

XGS6 steel brush rust remover is an environmentally friendly machine that removes more than 95% of the oxide layer on the wire surface. According to different raw materials, different oxide layers, and different customer requirements, choose 4 steel brushes, 6 steel brushes, and 8 steel brushes. Steel brushes, 10 steel brushes..., two steel brushes as a group, each group of steel brushes is at an angle of 120°, the steel brushes are pressed on the surface of the wire, the pressing force is generated by the weight of the adjusting block, and the adjustment is fast There are three, users can choose to use according to the actual situation.

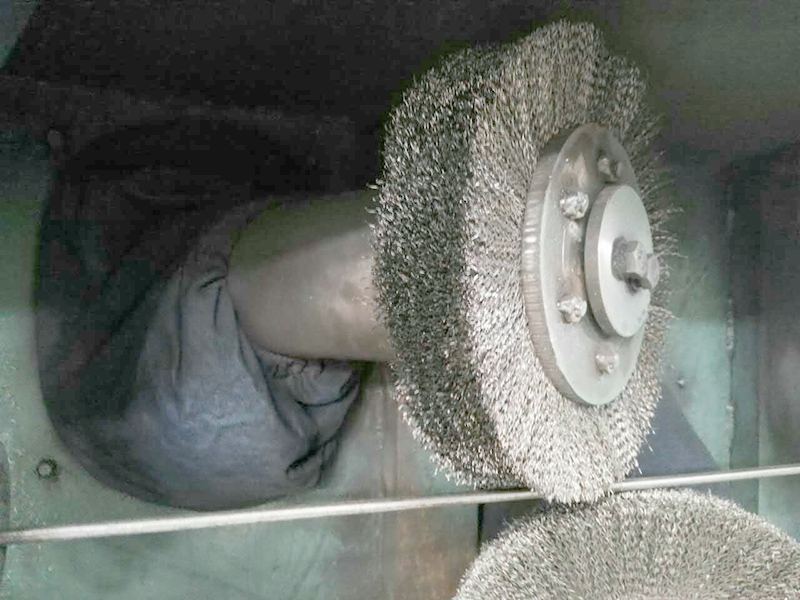

The steel brush wheel can be selected and used according to different wires. The oxide layer can be removed without scratching the wire. The diameter of the wire of the wire brush is between Ø0.3mm—Ø2mm, and the hardness of the wire is selected between HRC20°— HRC55°. If the wire passes through the straightener before entering the steel brush peeling machine, the effect is obvious.
The most serious defect is that the steel wire surface is difficult to draw after being brushed. The steel wire carries less lubricating powder and the consumption of the mold increases sharply. Therefore, it is usually used in combination with an abrasive belt polishing machine. Thread-like dents are formed on the surface. These dents are filled with lubricating powder into the mold, and the drawing effect is comparable to boron coating or phosphating.
